On SSL/TLS Certificate Chains

Pavol Kutaj

Jan 20·4 min read

1. usecase

The aim is to document the security/networking concept of certificate chain based on the superb Troubleshooting with Wireshark: Analyzing and Decrypting TLS Traffic in Wireshark (Using HTTPs)

2. Certificate Authority Server (CA)

• certificate must be issued by a trusted party called Certificate Authority Server
• certificate authority is public and acknowledged by vendors

3. Cert Chain

• check any certificate within a browser (devtools 🠊 certificate 🠊 certificate path) and see the certificate chain consisting of
• 1 root certificate
• 1+ intermediate certificates
• 1 server certificate

• the certificate chain is a chain of authority in certificates
• we can do some mathematics to verify that the certificate was actually issued by a CA that is said it was (this verification is SIGNING)

4. root cert

• in the order of hundreds (~150) globally

• offline
• in-OS
• root certs create intermediate certificates (physically on the vendor’s side)
• root certificate signs the intermediate certificate each session to guarantee its origins

• you purchase root certificate from verified, publicly available HTTPS CA
• Let’s Encrypt for Free
• Verasign
• Digicert …
• the root certificate verifies that the server you are browsing to is actually the server it declares itself to be

5. intermediate certificate

• in the order of thousands

• root certificate creates an intermediate certificate
• root signs the intermediate certificate with the root certificate
• the certificate authority server sends the intermediate certificate to the web browser organization
• also, intermediate certificates are often included in OS updates
• online
• in-browser

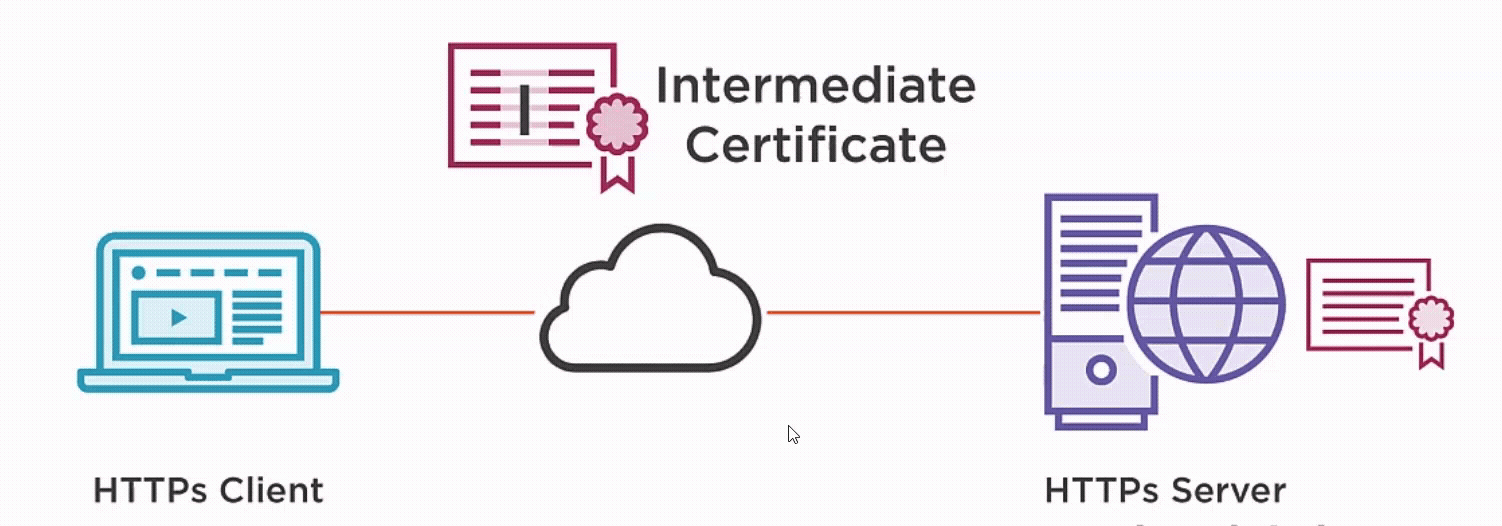

• downloaded to both client and the server from-CA-server as visualized below
• only afterward a server certificate is sent
• sometimes, the intermediate cert is sent from the server as well (just in case CA server not accessible)
• this being recommended as a best practice

• intermediate cert creates server cert at the time of its issue
• intermediate cert signs server cert each session
• if you need to export an intermediary certificate follow How to Download an Intermediate Cert From Browser — Kemp Support

6. server cert

• online
• in-browser
• from-endpoint server
• contains domain-name
• passed during the session after it is signed by an intermediary cert
• after it is verified that it is issued by the downloaded intermediate certificate
• …it is downloaded
• and public-private key exchange can begin

6.1. public key

• 2 large prime numbers used for the public/private key exchange

6.2. verification information

• certificate chain of authority that links particular domain(server) certificates to an intermediary to root certificates
• you do computations to verify that certs were actually issued by who they claim to be issued by

6.3. URL

• the domain the are certifying

6.4. expiry

• date

7. expiry

• all of the certificates have expiry dates
• usually, we talk about server cert expiry
• check the expiry easily with openSSL

openssl s_client -connect github.com:443 | openssl x509 -noout -enddate
depth=1 C = US, O = DigiCert Inc, OU = www.digicert.com, CN = DigiCert SHA2 High Assurance Server CA
verify error:num=20:unable to get local issuer certificate
notAfter=May 10 12:00:00 2022 GMT
